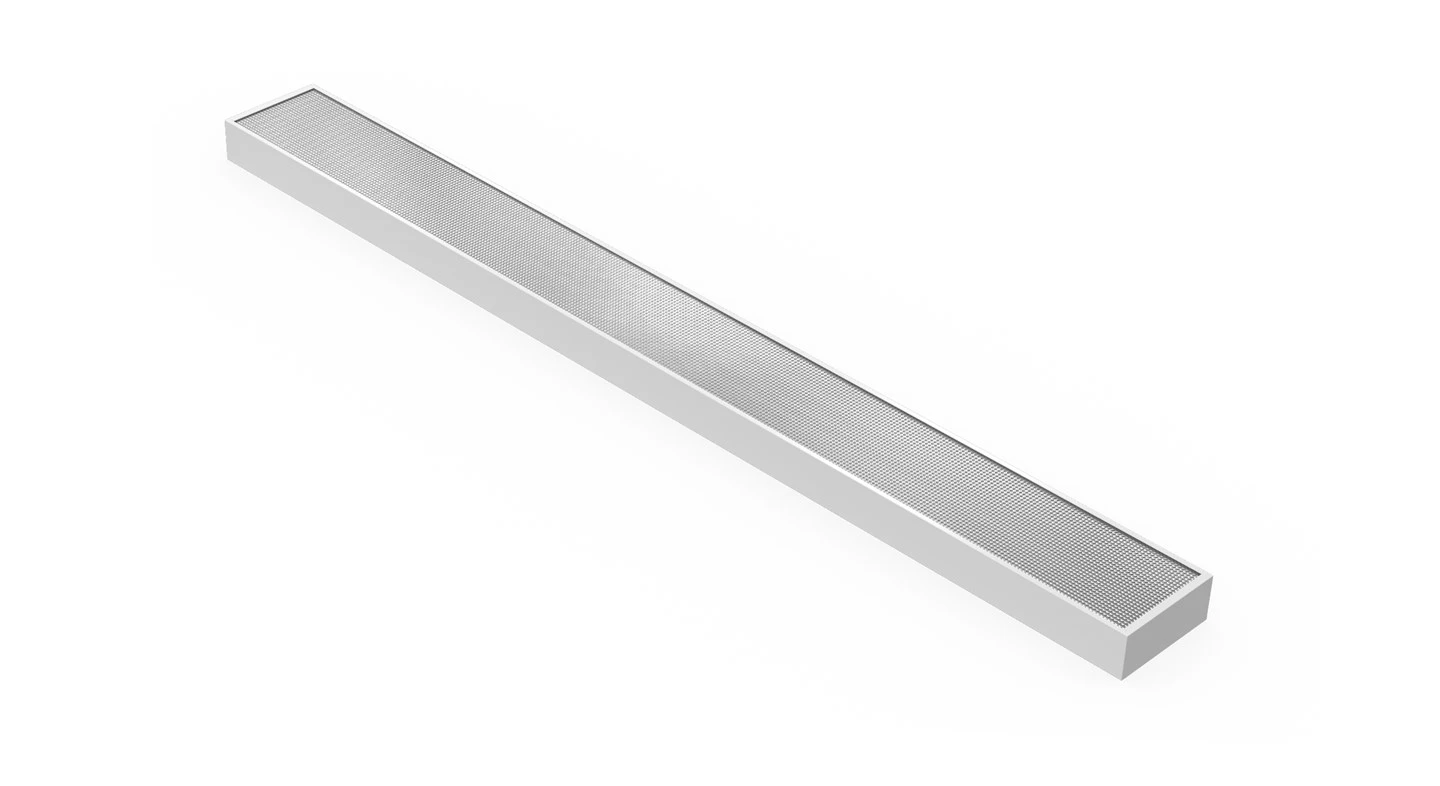

Brighton UGR Batten Light

Brighton-Batten2

Brighton-Batten3

Brighton-Batten4

Brighton-Batten5

Opis:

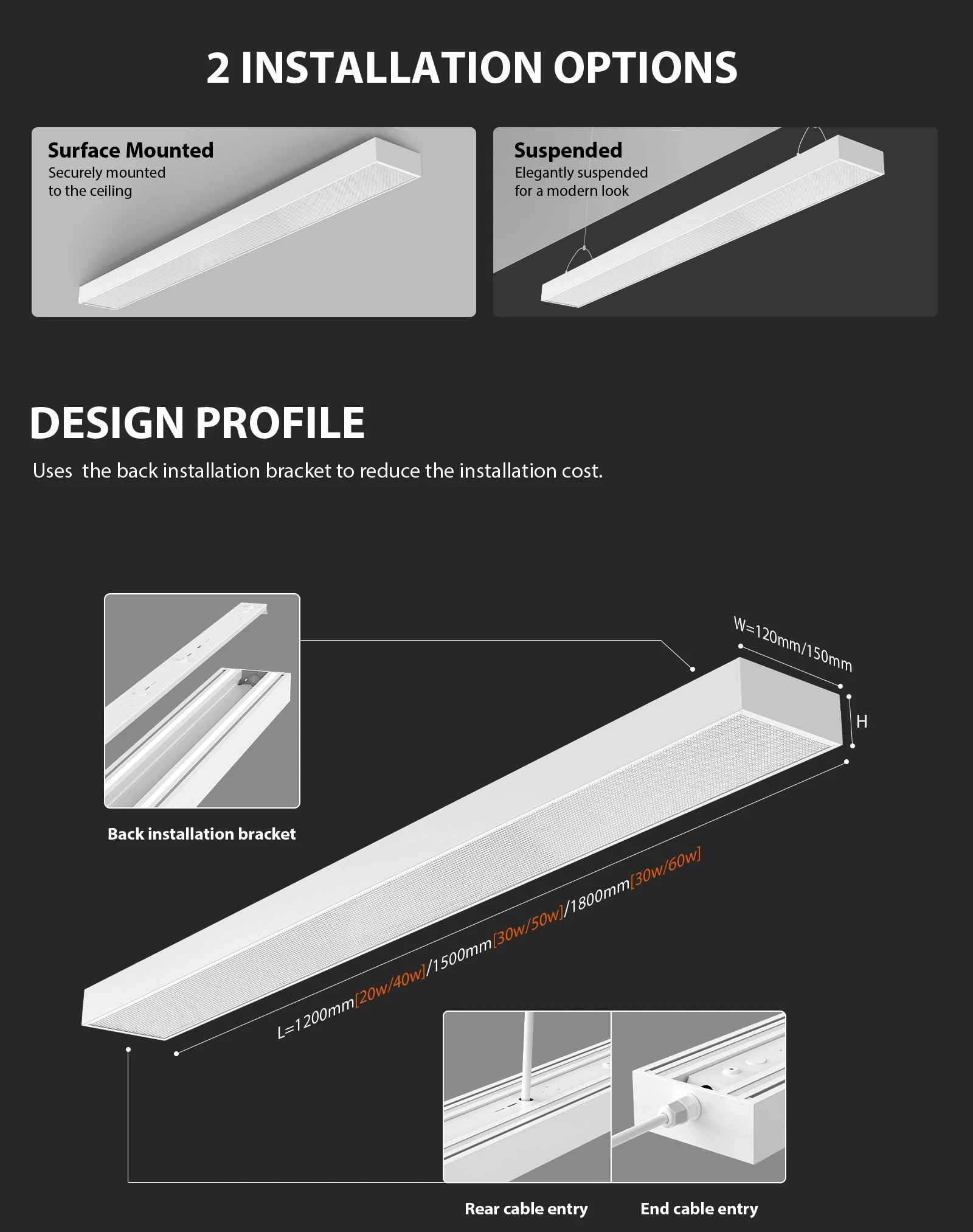

Svetlobna telesa Brighton battens so najnovejši dizajn, ki ne izpolnjuje le optičnega UGR<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

Lastnosti:

>UGR<19 with prismatic diffuser

>Napajanje in CCT stikalo na gonilniku LED

>120 mm|Na voljo širine 150 mm

>Ra80 ali Ra90, SDCM<3

>UP lučka @ konstantna 2X4W kot opcija

>Končna ali zadnja besa za vnos kabla

>Različne različne funkcije kot možnosti

>Na voljo so dimenzije 4ft/5ft/6ft

>Vgradna / nadometna montaža / vgradnja vzmetenja

>5 let garancije

Pošlji povpraševanje

Travnato gričevje

Opis

Tehnične parametre

UVOD:

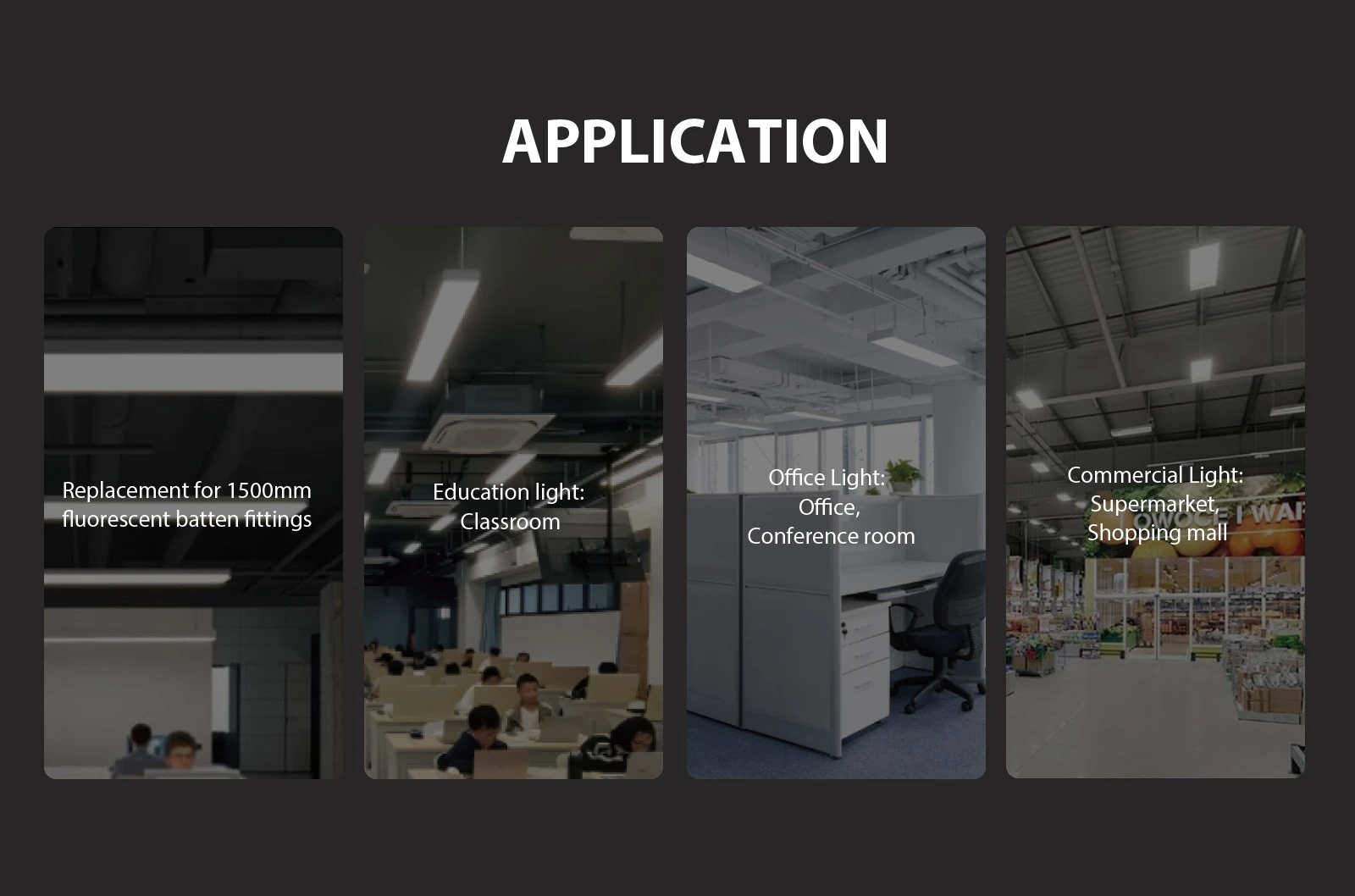

Brighton Batten LED razsvetljava ponuja širine 120 mm, 150 mm kot opcije, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

NEPREMIČNINA:

Brighton UGR Batten 150 mm je naša najnovejša letvna svetilka, zasnovana za vrhunsko zmogljivost in prilagodljivost. S širino 150 mm se ta luč neopazno vključi v vsak prostor in ima nizko bleščanje (UGR).<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

Koda naročila	širina	Nazivna moč	LM/W	Lumen	SDCM/Ra	Watt/CCT Stikalo	Dimenzija izdelka	GW/CTN	KOL./CTN
BT500-04W-DT1-40F01	120 mm	20W/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	D1200xŠ120xV60	8,84 kg	4 kosi
BT500-05W-DT1-50F01	120 mm	30/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	D1500xŠ120xV60	11,12 kg	4 kosi
BT500-06W-DT1-60F01	120 mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	D1800xŠ120xV60	14,52 kg	4 kosi
BT510-04W-DT1-40F01	150 mm	20/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	D1200xŠ150xV60	11,12 kg	4 kosi
BT510-05W-DT1-50F01	150 mm	25/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	D1500xŠ150xV60	13,40 kg	4 kosi
BT510-06W-DT1-60F01	150 mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	D1800xŠ150xV60	16,80 kg	4 kosi
